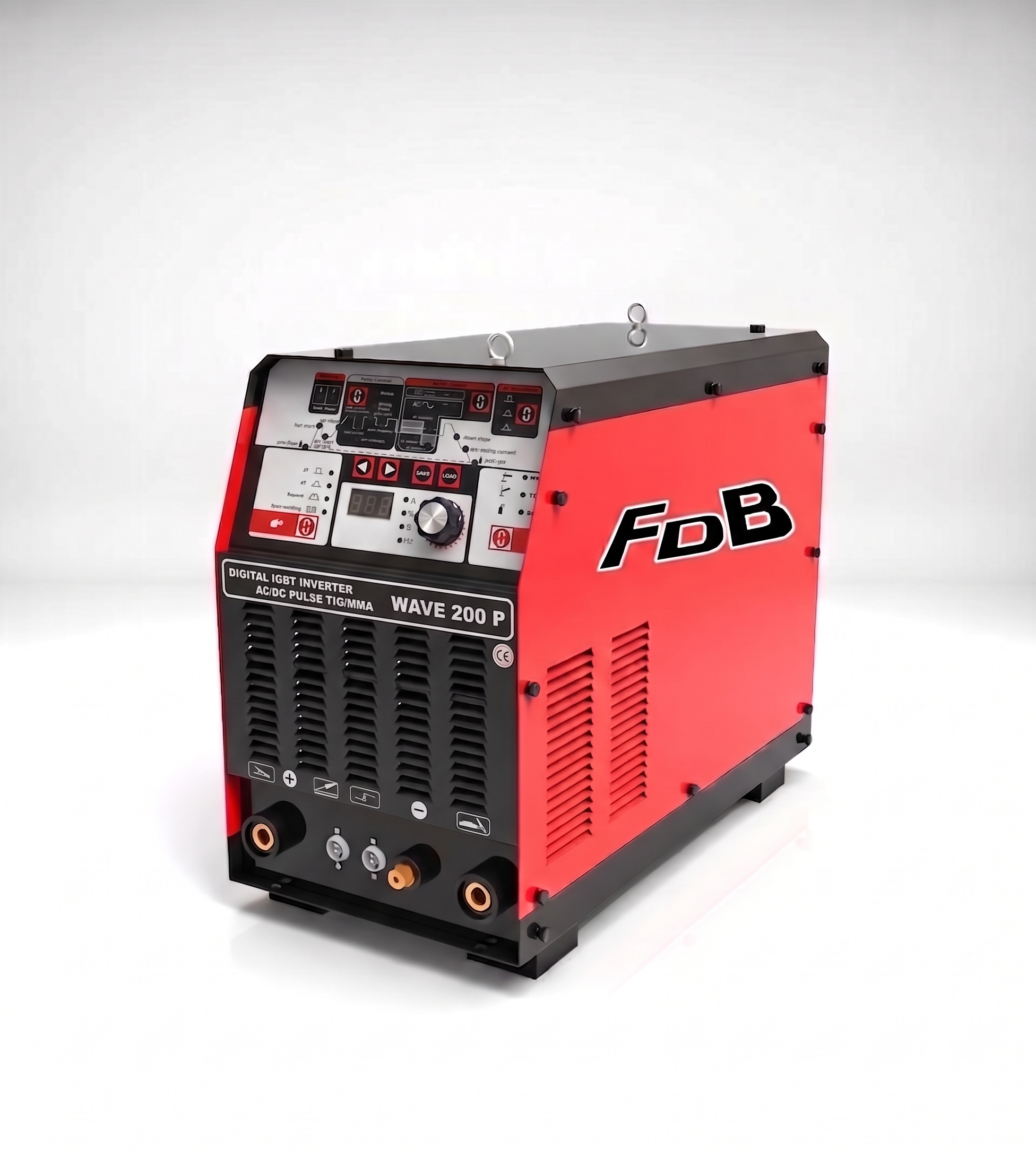

WAVE 200 P

The WAVE 200 P features TIG & MMA functions (the function can be switched manually).

It utilizes advanced inverter technology to convert 50/60Hz power frequency electricity into above 35kHz high-frequency electricity through the inverter, combined with powerful components such as IGBT. Then, through voltage reduction, rectification, wave filtering, as well as pulse-width modulation (PWM) and closed-loop back circuit control technology, it outputs stable DC current.

As a result, the WAVE 200 P offers high efficiency, low energy consumption, a compact design, excellent dynamic characteristics, a stable arc, and continuously adjustable current. It also includes protection against overvoltage, overcurrent, and overheating, ensuring both safety and durability.

The welder has constant current characteristics. The welding current remains stable regardless of arc length, while the advanced HF arc-striking technology allows easy arc initiation, a stable arc, and clean, attractive weld seams.
